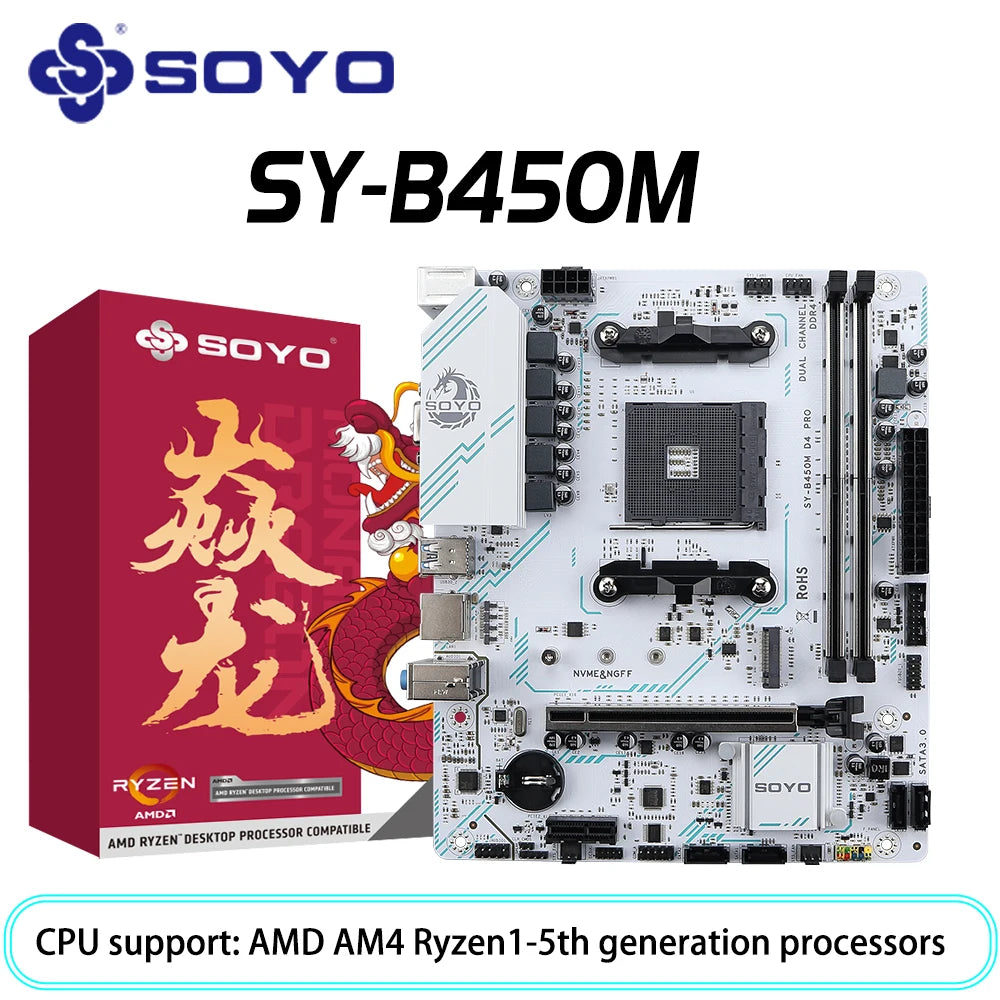

SOYO AMD B450M Game Motherboard DDR4 Memory AM4 Mainboard M.2 NVME Desktop Computer components Supports CPU AMD AM4 Ryzen1-5th
SOYO AMD B450M Game Motherboard DDR4 Memory AM4 Mainboard M.2 NVME Desktop Computer components Supports CPU AMD AM4 Ryzen1-5th
Couldn't load pickup availability
SPECIFICATIONS
Application: Desktop
Audio Channels: 7.1

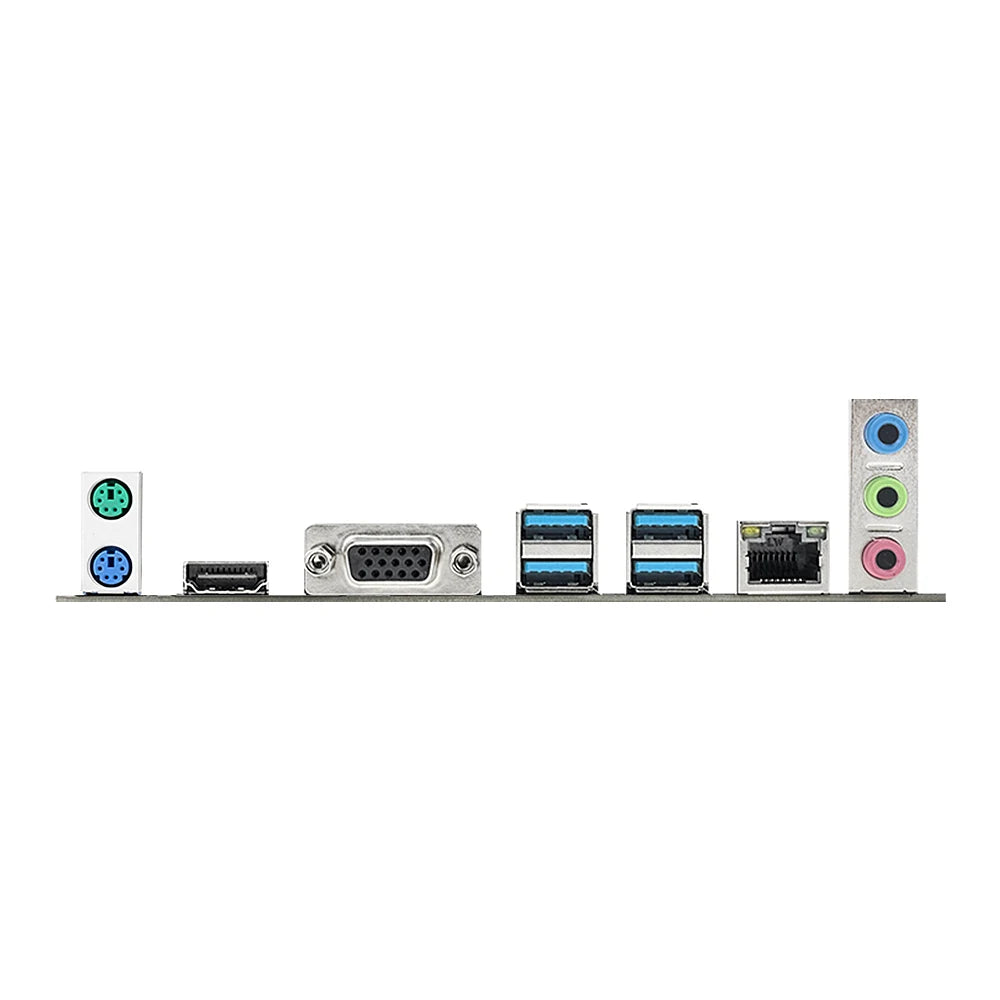

Back I/O Ports: 1x RJ45,HDMI 1.3,2x USB 3.2/3.1 Gen 1,PS/2
Battery Included: No
Brand Name: SOYO
Chipset: AMD B450
Chipset Manufacturer: AMD
Choice: yes
Hign-concerned Chemical: None
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 64 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 1
Number of PCI: 1
Number of PCIe x 16: 1
Number of PCIe x 8: 1
Number of SATA Ports: 4

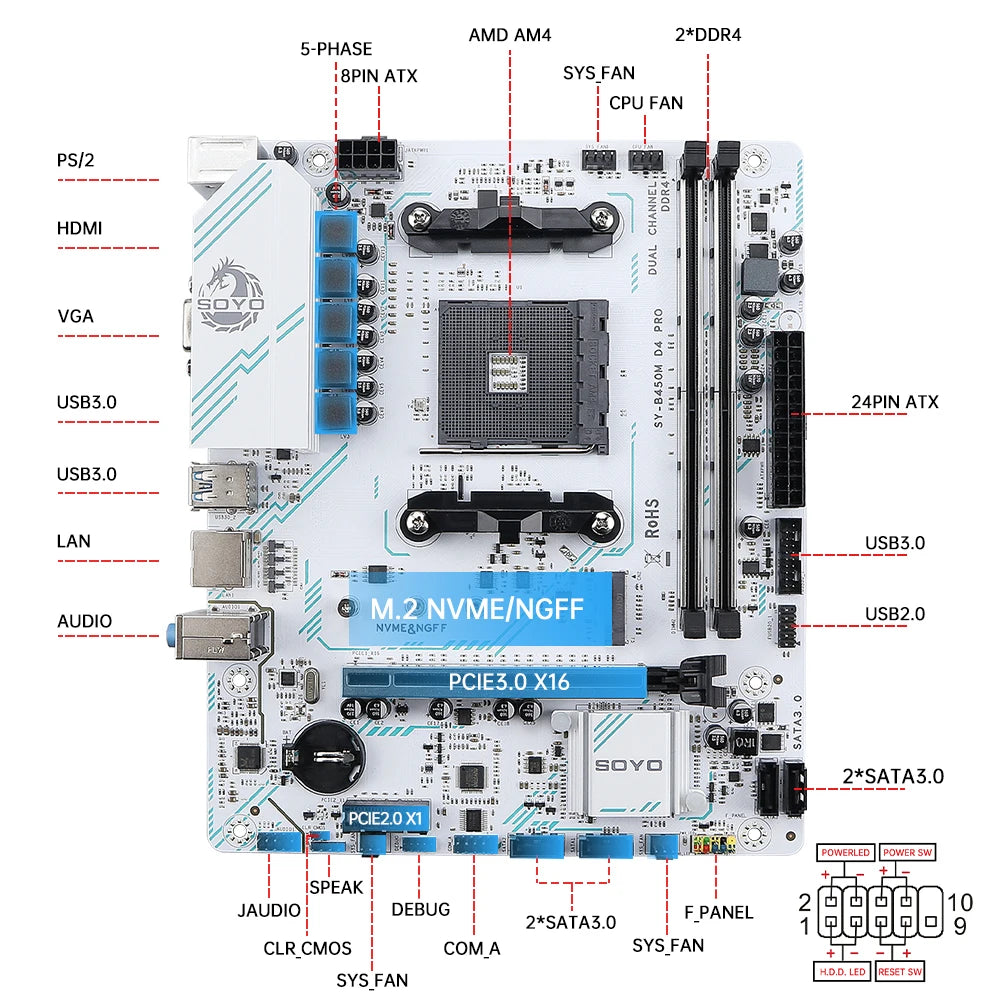

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector,USB 2.0 Connector,System Panel(s) (Chassis intrusion header is inbuilt)
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: Ethernet
Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 2000 Series-R5,AMD Ryzen 4000 Series-R7,AMD Ryzen 3000 Series-R7,AMD Ryzen 1000 Series-R5,AMD Ryzen 3000 Series-R3,AMD Ryzen 1000 Series-R3,AMD Ryzen 4000 Series-R5,AMD Ryzen 3000 Series-R5,AMD Ryzen 5000 Series-R3,AMD Ryzen 2000 Series-R3
RAID Supported: Yes
Socket Type: AM4
Special Features: None
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR4
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2242,2280,2260
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Office,Video Rendering
With CPU: No
• Supports Ryzen CPU :The SOYO Motherboard Classic is designed to support AMD Ryzen CPUs, including the 5500, 5600, and 5600G models, ensuring optimal performance and compatibility.
• Dual-channel DDR4 Memory :Equipped with dual-channel DDR4 memory, this motherboard provides high-speed data transfer rates, enhancing overall system performance.
• AM4 Mainboard :As an AM4 mainboard, it supports the latest AMD processors, offering flexibility and future-proofing your system build.
• M.2 NVME Support :The motherboard features M.2 NVME support, allowing for fast data transfer rates and improved system speed.
• Full New Condition :This motherboard is in full new condition, guaranteeing high-quality performance and longevity.
●Notice：The CR2032 battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
High specification, strong expansion,
super single product
Powerful power supply module
5-phase power supply combo
Dual-slot, dual-channel DDR4 memory for stable operation
2 DIMM DDR4 memory slots
Supports up to 64GB total capacity
Supports dual-channel memory technology
Supports 2133/2400/2666/3000/3200/3400/3600MHz (OC+) memory frequency
